Details
Feature function:
Automatically adapt to LED light which works from DC12V-48V.
Real 0~100% brightness adjust, 4096 scale levels. Lamplight soft and stable,
2 channel outputs with Max 350mA or 700mA constant current. Working with power repeater to expand power output unlimitedly.
2 DIY modes. Easy to replay your favorite settings
Small size, flexible to install.
Product parameter:
Product Model:BC-313-350
Input voltage:DC12V-48V
Max load current:350MA/CH*2
Driving LEDs/CH:1-12pcs 1W LED
Output signal:Constant current PWM
Dimming range:0-100%
Scale levels:4096 levels/CH x 2
Switch Dimension:L125xW45xH36(mm)
Weight (G.W):140g
Product Model:BC-313-700
Input voltage:DC12V-48V
Max load current:700MA/CH*2
Driving LEDs/CH:1-12pcs 3W LED
Output signal:Constant current PWM
Dimming range:0-100%
Scale levels:4096 levels/CH x 2
Switch Dimension:L125xW45xH36(mm)
Weight (G.W):140g
Remote Battery is not include
Note:Only connects with two different color temperature lights,can adjust the color temperature.It can connect with power repeater series to extend power.
Remote Battery is not include
Package Include:

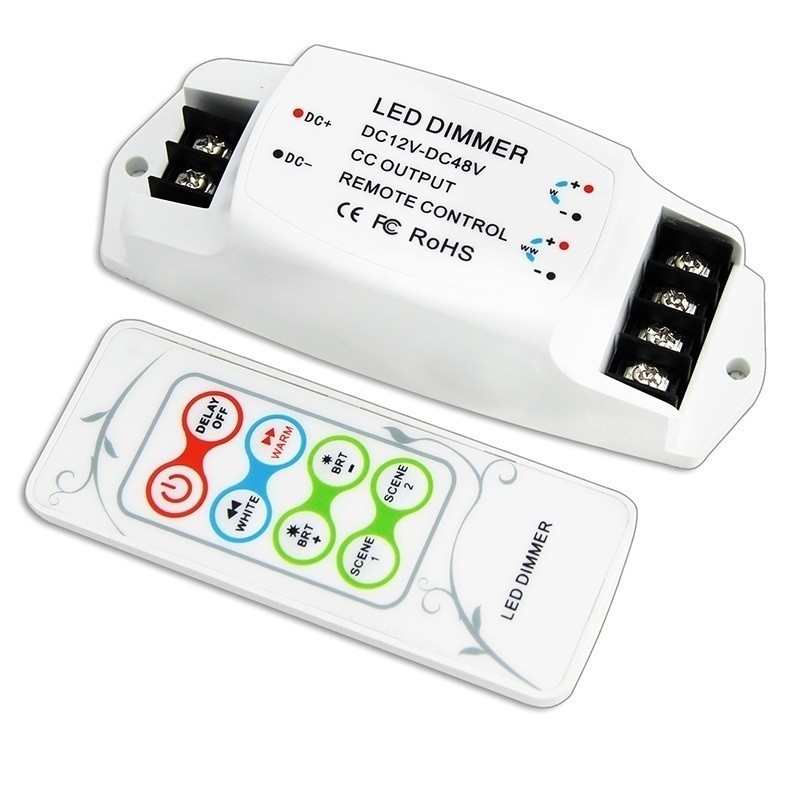

1 Piece of BC-313 Bincolor Led Controller PWM Color Temperature Remote Control
Great Choice for Green Life, CE and RoHS Approved
