Details

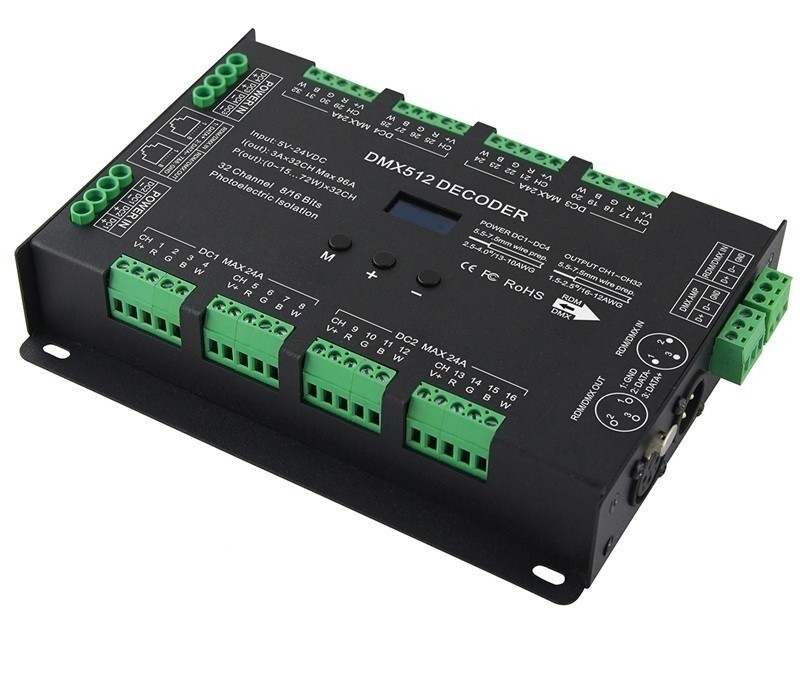

This DMX512 Constant Voltage Decoder is developed only for constant voltage LED lamps. It adopts advanced micro-computer control technology to transfer DMX512/1990 signal to PWM signal. 32 channels output, max 3A each channel, 65536 gray scales, workable for single color, color temperature, RGB and RGBW led lamp.
Basic Features:
Support RDM function.
Optional output frequency 1K,2K,4K,8K.
Output gamma curve can be adjusted.
DMX decoding supports 8 bits or 16 bits.
OLED display.
32 channels output.
Power-off data saved function.
Specifications:
Model: BC-632 (32CH DMX512 Decoder)
Input voltage: DC5V-24V
Max load current: 3A/CHx32, Max 96A
Max output power: 480W(5V)/1152W(12V)/2304W(24V)
Scale Levels: 65536 levels
Input signal: DMX512/RDM, 8Bit,16Bit optional
Output Signal: Constant Voltage PWMx32CH
Decode channel: 32CH
DMX512 socket : XLR-3R/ Rj45/ Terminal block
Control mode:DIM /CT /RGB /RGBW 4 modes switch
Dimension:L195 x W145 x H38(mm)
Weight (G.W):810g
Package Content:
1 Piece of Bincolor Led Controller BC-632 32CH DMX-PWM Decoder 5V-24V Switch Driver
1 Piece of User's manual
CE and RoHS approved
CE and RoHS approved
