Details
Working Tempetature: -20-60 Celsius
Input voltage: 12V DC
Output: nine CMOS drain-open output
Max load current: 3A each channel
Size: L100 X W70 X H60mm
Contact ways: common cathode
Changes:
1. single color horse race lamp gradually change
2. Static colour
3. Seven color horse race lamp gradually change
4. single color horse race lamp
5. Seven color horse race lamp change
6. Seven color jump flash gradually change
7. Seven color horse race lamp
8. single color gradually change
9. Seven color horse race lamp
Left: horse race lamp to left direction.
Right: horse race lamp to right direction
Controller details(according to the controller interface)
ON | SMD | RGB | OFF |
G--green | 1-- single color change | 2-- Static colour | 3-- Seven color horse race lamp gradually change |
B--blue | 4-- single color chage | 5-- Seven color change | 6-- Seven color jump flash gradually change |
R--red | 7-- Seven color horse race lamp | 8-- single color gradually change | 9-- Seven color horse race lamp |
O-light blue |
| increase brightness (8 steps total) |
|
W--white | Slow--reduce speed | Reset | Rapide?€?increasehorse race lamp speed |
O-purple |
| reduce brightness |
|
O-yellow | Left-- horse race lamp to left direction. |
| Right-- horse race lamp to right direction.
|
Package included

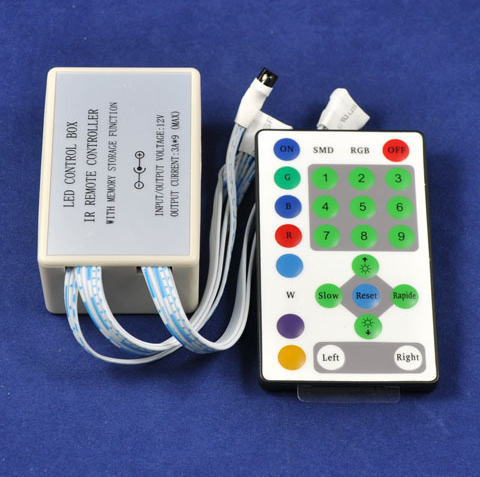

1 Piece of 25 Keys Horse Race IR Remote RGB LED Controller ( Common Anode)
1 Piece of IR Remote
1 Piece User Manual
