Details
This LED amplifier is a constant voltage power repeater and works with DC 5V to DC 24V LED strips and other devices. It is suitable for all of our RGB controllers to expand power output.
Input: Screw terminals for easy connection to our male barrel plug or stripped power supply wires.
Output: Screw terminals for easy connection to our RGB Flexible LED Strips or control cable.
You can connect and control up to 4A/Ch of output (4x rolls of our RGB Flex Strip).
Supports PWM (Pulse-Width-Modulation) control for 0-100% Dimming and Full Color Control.
You can stack amplifiers (2x repeaters connected = 8A/Ch) (4x repeaters connected = 16A/Ch)
Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller. Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output.
Suggested Uses | Simply connect the output of one of our RGB Controllers (DMX, IR, or RF) to the input of this controller. Then, connect a power supply to the (+) and (-) and connect your RGB LED Strips to the Output. |
|---|---|
Led Color | N/A |
Mounting Options | Other |
Voltage | DC 5V to 24V |
Wattage | 4A/Ch |
Output Power | 4A/Ch - 48W/Ch |
Number Of Chanels | 3 |
Rated Amps / Ch | 4A/Ch |
Power Input: Connection Type, Voltage, Amperage | Screw Terminal |
Output Connection Type | Screw Terminal |
Can Power/Control (xx) Feet of strip | Up to 64' of RGB Flex Strip or 4A/Ch |
Max Connected Strip Length From Each Power Connection | at full brightness (white) we recommend you only connect 2 rolls from each power connection for accent lighting say about 25% you can connect 8x rolls end to end |
Controllable By | Any of our Controllers |
Suggested Accessories | Male Power Connector for connecting to power supplies |
| Common Anode is default for this item, if you need common cathode style, pls email us to confirm this. |

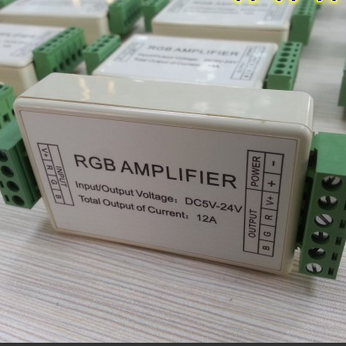

Package Included: 1 Piece of 12A RGB Amplifier RGB LED Booster DC5V-24V
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
