Details
Extended new series products are based on the Mini series controllers, increase RGBW 4CH control, workable for dimming, Color temperature, RGB and RGBW. And the output power of receiver is higher.
4096 / road grey scale (most of them is 256 in the market), high grayscale performance is more outstanding, the light is more gentle, dynamic changing modes become more rich and colorful. With innovative technology design: One receiver compatible with seven different functions of the remote control (patent technology), that is use one receiver can experience dimming, color temperature and RGB controlled, which can satisfied the different demands of client.
M series with extremely high performance and creative design. They can experience humanized design concept when traders in sales, engineers in installation and the clients in using.

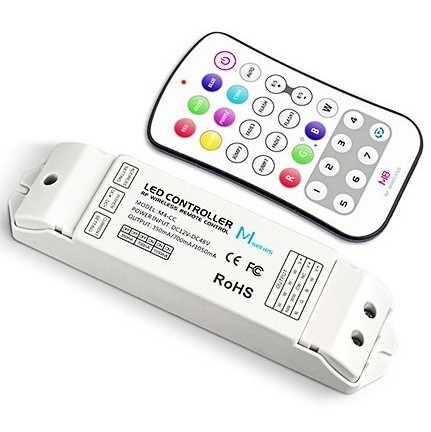

M4-CC RGBW 4 channels receiver can be paired with a remote control. To learn a new ID simply press the learn button (quick press) on the receiver, then any button on a remote. The receiver is then matched to that remote control. To cancel an ID press the learn button for 5 seconds.
M1, M2, M3, M4, M5, M6, M7, M8 Remote Control | |
| Working voltage | DC3V(Battery CR2032 ) |
| Working Frequency | 433.92 MHz |
| Remote Distance | 40-50m |
| Working Temp. | -20℃~55℃ |
| Dimensions | L104×W60×H9mm |
| Weight (N.W.) | 42g |
| One set weight (G.W.) | 225g |
M4-CC Constant Current Receiving controller | |
| Power input | DC12V-DC48V |
| Output voltage | DC3V~DC46V |
| Output current | CC 350/700/1050mA 3 in 1×4CH |
| Output power | 1.05W~48.3W ×4CH Max 193.2W |
| Compatible remote | M1/M2/M3/M4//M5/M6/M7/M8 |
| Gray scale level | Max 4096×4096×4096×4096 |
| Working Temp. | -30~55C |
| Dimensions | L175×W44×H30(mm) |
| Weight (N.W.) | 125g |
8 Remote controllers for optional
One receiver compatible 8 different functions remote controllers. Dimmer, color temperature, RGB, RGBW, select what you want. Such as, M3, M4, M6, M7 and M8 control the receiver connected with RGB lights meanwhile, and function is 5 times than general ones.
10 remote control for 1 receiver
1 receiver can be controlled by 10 same or different RF remote at most for dimming.
RF radio frequency (RF) remote control, strong penetration ability of the wall
RF radio frequency (RF) remote control, wireless signal strong penetrating power, even if there is an obstacle in front can be controlled, the partition of remote control; ID code, independent each other.
To simplify
Well-designed remote control operation key, Useful features, rejection of complex instructions,enjoy the colorful world.
Low power consumption
The touch color wheel remote control is used new circuit design which will be lower power consumption, Only use CR2032 button batteries, the first one in the industry, making the remote control more lighter and thinner.
Humanized wall bracket
With this humanized wall bracket which can fix the remote on obviously place of wall,You will not be bothered to find the remote.
Lighter, more transparent and intuitive packing
Processing & Shipping & Tracking
Mostly the parcel will be shipped within around 1 to 3 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. Pls contact service@szdealer.com
Our website is very easy to use, you would place order without register, the shipping fee is based on the weight of the products you ordered. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.
All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to USA, UK, France, Germany, Italy, Switzerland, Spain, Canada, Sweden and other Europe countries, and we show you the following photos which we took right before we pack the parcels.
Ordering & Payment
We supply our clients with high quality products, quick shipping and professional service, Here are some photos of the Paypal Payments to our account, as you would see, all of the orders has tracking number, and none of them has any problems to be asked for refund or something else, it is a good reference of our products and service: (We covered the name and email to protect the privacy of our clients).
We offer high quality products and service, so a lot of customers become our loyal customers after they first buy, here are some cases for your reference:
We have access to additional products which are not yet listed on this website. If there is something else you need, please email us we will check on its availability and get back to you very soon.
Pls Contact service@szdealer.com We will reply quickly and professionally.
You would also send us a list of items you want to buy, and we will make a quotation then send Paypal Invoice to you to make shopping easily.
We weekly supply hundreds of parcels to UK, USA, Germany, Denmark, Austria, Canada, France, Spain and other coutries, enjoy good reputation of high quality and quick delivery.
You would always find LED Strips, LED Controllers, LED Power Supply, LED Accessories on Szdealer.com
