Details
Technical Parameters
Working voltage: AC90~240V /50-60Hz
Working temperature: -20-60 degree
Working power consumption: about 2W
Output: trailing-edge dimming
Packing size: L90 Χ W90 Χ H40 mm
External dimension: L86 Χ W86 Χ H37 mm
Net weight: 150g
Gross weight: 211g
Power Input: Power input interface, input voltage range is AC90-240V.
Load (lamp): AC voltage regulator signal output interface, the maximum load is 200W.

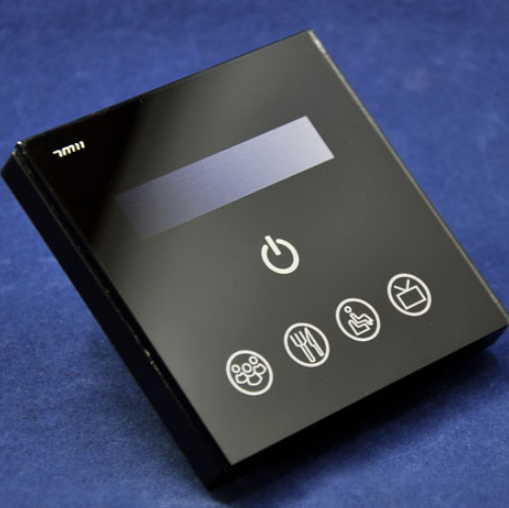

Buttons Description:
This product has storage capabilities of four scenes; it could meet the applications of user's various needs. According to their needs, user can set the output type of related scenes, when need to call any scene, you just need to press the scene that you set to call the scene, it is very conveninent. This product has six buttons, simple to operate, and easy to use. It adopts computer digital chips, with high reliability, accurancy and other characteristics, the setting of distance between buttons is designed scientifically through experience and user's reflect, at the same time, it has function of long press and short press, can greatly reduce the misuse.
Slide bar control: adjust brightness of lights, in the case of opening buzzer, each operation when let go, you can hear “di”, which means the operation is effective.
Scene 1:
Long press: store the current scene, light is on; in the case of opening buzzer, “didi” of buzzer, that has been stored the scene, release your hand, the corresponding LED will light; if the buzzer is off, long press for a while, then you can release your hand, the correspongding LED will light.
Short press: switch to stored scene, the button indicator pressed will light, when buzzer is on, you can hear “di” of buzzer.
Scene 2:
Long press: store the current scene, light is on; in the case of opening buzzer, “didi” of buzzer, that has been stored the scene, release your hand, the corresponding LED will light; if the buzzer is off, long press for a while, then you can release your hand, the correspongding LED will light.
Short press: switch to stored scene, the button indicator pressed will light, when buzzer is on, you can hear “di” of buzzer.
Scene 3:
Long press: store the current scene, light is on; in the case of opening buzzer, “didi” of buzzer, that has been stored the scene, release your hand, the corresponding LED will light; if the buzzer is off, long press for a while, then you can release your hand, the correspongding LED will light.
Short press: switch to stored scene, the button indicator pressed will light, when buzzer is on, you can hear “di” of buzzer.
Scene 4:
Long press: store the current scene, light is on; in the case of opening buzzer, “didi” of buzzer, that has been stored the scene, release your hand, the corresponding LED will light; if the buzzer is off, long press for a while, then you can release your hand, the correspongding LED will light.
Short press: switch to stored scene, the button indicator pressed will light, when buzzer is on, you can hear “di” of buzzer.
On/off switch: When controller switch is turned on, the backlight is off, operations of other keys are effective, it can perform operation of all functions. When controller is turned off, the backlight will light up, it can not perform the above operation, can only perform on/off switch; long press the button, you can operate on/off of the buzzer. You can turn on/off the buzzer by long pressing.
Package Include:
1 Piece of Touch Panel Controller
1 Piece of User's Manual
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
