Details

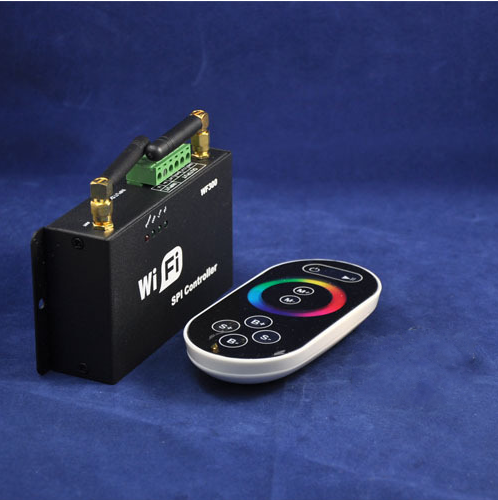

LED-WiFi controller is following the traditional with infrared, RF technology controller foundation, it is birth of market and customer's demand, it is one type controller which integration the newest WiFi technical in the market. It makes the LED control more convenience, more hommization. We can use an Android system or iOS system mobile phone to install control software, then it can control LED, this is the wishes of every customer.
Use WiFi technology can make our control range more wider, can get rid of narrow space constraint, in building can control more than 50m, in outdoor can control more than 100m.
In the condition of not use the mobile software, also can use the remote control to control, very convenience, bring many choices for you.
1. Remote control technical parameters
1: Working temperature: -20~60°C
2: Power supply method: AAA*3
3: Supply voltage:1.5V*3
4: Standby power: 0.015mW
5: Standby current: 3uA
6: Working current: 200uA
7: Emission current: 10mA
8: Remote control distance: about 50m
9: Standby time: 6 months
2. Software technical parameters
1: Name: Dream Color
2: Runtime platform: Android version support Android system(better one can support Samsung,
HTC), IOS version support IOS system, equipment must have WiFi function.
3: Language: English
4: Category: communications
5: Free, green, no plug-ins
3. Controller technical parameters
1: Working voltage: DC 5~24V
2: Output control: SPI signal output
3: Output current: 4A*3
4: Connect mode: SPI signal wires(DATA, CLK)
5: External dimension: L107*W65*H30(mm)
6: Receiving sensitivity: 802.11b DSSS(-5dBm),802.11b CCK (-10dBm),802.11g
OFDM(-15dBm)
7: Support IC type:LPD6803/UCS1903/WS2801/WS2811/TM1803/TM1809/TM1812/TLS3001/TLS3008/P9813
Package Included:
1 Piece of Wifi Controller
1 Piece of RF Remote
1 Piece of User's Manual
1 Piece of CD
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
