Details
Specification:
1) Working Voltage: DC 12V
2) IC type: WS2811 or UCS1903 (Pls Choose)
3) IC quantity: 1 piece per light, total 50 ICs for 1 string
4) LED type: SMD 5050 RGB
5) LED quantity: 3 piece per light, total 150 LEDs
6) Pixel: each module is one pixel
7) Max power: 0.72W for Per Piece. 50 Pcs for 1 sting, total 36W for 1 sting
8) Bit: 8
9) Greyscale: 256 levels
10) Diameter: 50mm, Waterproof Protection
11) Package: 50 pieces/string
12) Distance between lights: 120mm
Connection
1) Signal wire: DC+, DAT, GND
2) DC+ and GND connect to power supplier; DAT and GND connect to controller
3) Relative Controller: SPI controller support WS2811 or UCS1903; when use DMX decorder, can connect to DMX system
4) Support online control
Color
1) Each pixel can be controlled individually
2) Can show any color
3) Can be used as flexible led display screen to show image and video
Installation Notice
1) Make sure the connection is correct according to the diagram
2) Pay attention to the parameters limit of voltage. DO NOT run over the peak value
Package include:

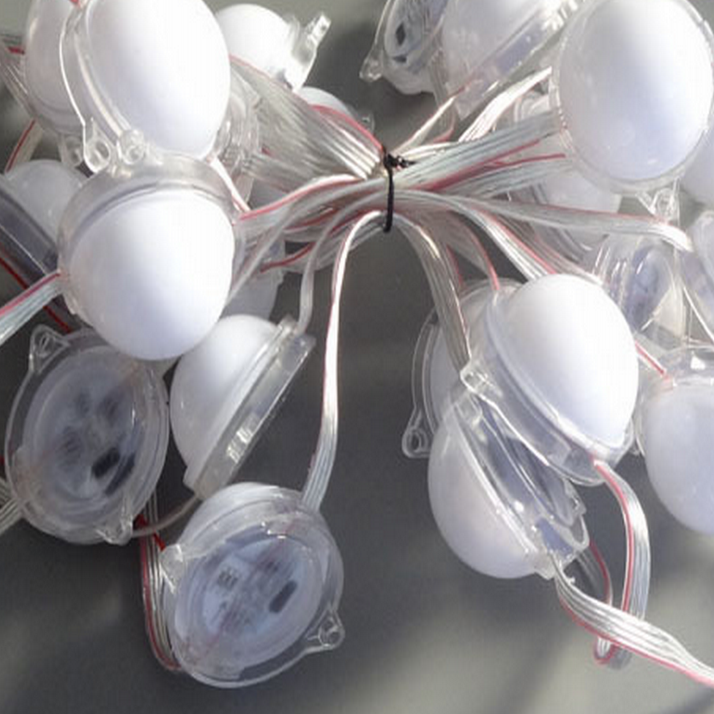

1 Sting of 50 pcs 50mm 12V LED Point Light Pixel Module
Great Choice for Green Life, CE and RoHS Approved
