Details
Technical parameters
Working temperature: -20-60℃
Supply voltage: DC5~24V
Output: 0-10v dimmer signal
Connect mode: common anode
Output current: ≤8A
Output power: 12V:<96W, 24V:<192W
External dimension: L108 Χ W42 Χ H27 mm
Packing size: L110ΧW50ΧH40mm
Net weight: 112g
Gross weight:: 135g

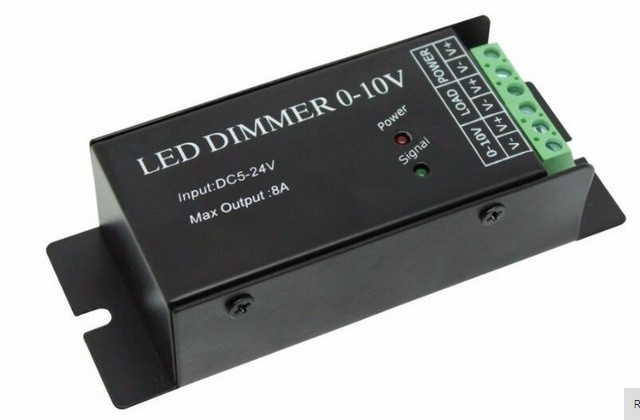

This dimmer have small sharp, through input 0-10V analog signal to control load output, dimmer provide 0-10 v port, it can external input 0-10v dimming, and also can connect potentiometer to dimming;The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on; It is cheap, Connection convenient, easy to use.
Package:
1 Piece of LED Controller
1 Piece of User's manual
Technical parameters
Working temperature: -20-60℃
Supply voltage: DC5~24V
Output: 0-10v dimmer signal
Connect mode: common anode
Output current: ≤8A
Output power: 12V:<96W, 24V:<192W
External dimension: L108 Χ W42 Χ H27 mm
Packing size: L110ΧW50ΧH40mm
Net weight: 112g
Gross weight:: 135g
This dimmer have small sharp, through input 0-10V analog signal to control load output, dimmer provide 0-10 v port, it can external input 0-10v dimming, and also can connect potentiometer to dimming;The dimmer output signal adopt most advanced PWM digital brightness adjustment technology, can control a variety of lamp whose source of light is LED. For instance, point source of light,flexible strip light, wall washer lamp, glass curtain wall light and so on; It is cheap, Connection convenient, easy to use.
Package:
1 Piece of LED Controller
1 Piece of User's manual
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
