Details
Input signal: DMX512 / RDM
Input voltage: DC12V ~ DC24V
Maximum load current: 5A × 5 CH Max. 25A
Output maximum power: (0 ~ 60W ... 120W) x5 way Max.600W
DMX512 socket: XLR-5, RJ45
Control mode: dimming / color temperature / RGB / RGBW / RGBWY
Dimming curve: 0.1 ~ 9.9
Grayscale: 8bit (256) / 16bit (65536) optional
Photoelectric isolation: Yes
Working temperature: -30 ℃ ~ 65 ℃
Product Size: L122 × W110 × H37 (mm)
Packing size: L125 × W115 × H39 (mm)
Weight (gross weight): 450g

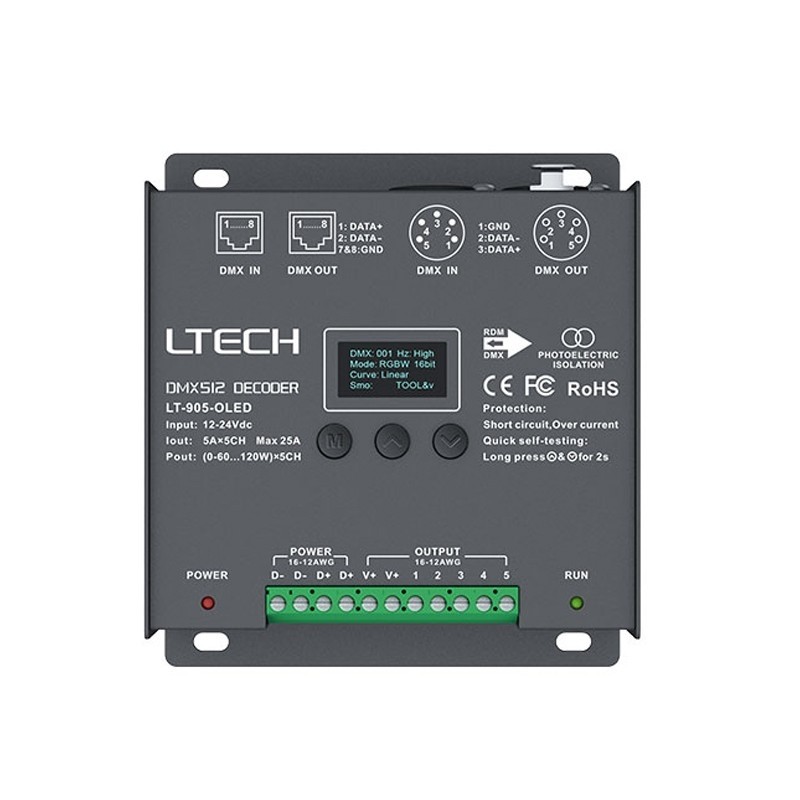

Product Introduction:
Designed for Hi-power multiple channels application, 5 channels output, and Max. 5A current per channel, up to 600W output power.
Easy operation with OLED screen and the touch buttons.
5 kinds of mode optional: single color, color temperature, RGB, RGBW, RGBWY.
Support 2 kinds of DMX ports with signal isolation function: 5-pin XLR,RJ45.
With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
With photoelectric isolation function.
With shortcut protection and over load protection, as well as warning function when fault. With fast self-testing function.
16bit / 8bit resolution optional.
Multiple dimming curve (0.1~9.9) optional.
Package Content:
1 Piece of LT-905-OLED
1 Piece of Manual
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
