Details
Input signal: DMX512/RDM
Control mode: DIM/CT/RGB
Input voltage: DC12V～DC24V
Max load current: 3A ×24CH Max. 72A
Max output power: (0~36W...72W) x24CH Max.1728W
Gray scale level: 8bit(256 levels)/16bit(65536 levels)
DMX512 socket: XLR-3, XLR-5, RJ45, Green terminal
DIM Curve: 0.1～9.9
Photoelectric Isolation: Yes
Working temperature: -30℃～65℃
Dimension: L300×W122×H39(mm)
Package Size: L309×W127×H41(mm)
Weight (G.W): 1120g
Product Introduction:
1. Designed for Hi-power multiple channels application, 24 channels output, and Max. 3A current per channel, up to 1728W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 3 kinds of mode optional: single color, color temperature, RGB.
4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).
5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
6. With photoelectric isolation function.
7. With shortcut protection and over load protection, as well as warning function when fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curve (0.1~9.9) optional.
Package Included:
Input signal: DMX512/RDM
Control mode: DIM/CT/RGB
Input voltage: DC12V～DC24V
Max load current: 3A ×24CH Max. 72A
Max output power: (0~36W...72W) x24CH Max.1728W
Gray scale level: 8bit(256 levels)/16bit(65536 levels)
DMX512 socket: XLR-3, XLR-5, RJ45, Green terminal
DIM Curve: 0.1～9.9
Photoelectric Isolation: Yes
Working temperature: -30℃～65℃
Dimension: L300×W122×H39(mm)
Package Size: L309×W127×H41(mm)
Weight (G.W): 1120g
Product Introduction:
1. Designed for Hi-power multiple channels application, 24 channels output, and Max. 3A current per channel, up to 1728W output power.
2. Easy operation with OLED screen and the touch buttons.
3. 3 kinds of mode optional: single color, color temperature, RGB.
4. Support 4 kinds of DMX ports with signal isolation function: 3-pin XLR, 5-pin XLR,RJ45 and green terminal (with signal amplifier function).
5. With RDM remote management protocol, the operations can be completed via the RDM master console, such as parameters browsing & setting, DMX address setting,equipment recognition, etc.
6. With photoelectric isolation function.
7. With shortcut protection and over load protection, as well as warning function when fault.
8. With fast self-testing function.
9. 16bit / 8bit resolution optional.
10. Multiple dimming curve (0.1~9.9) optional.
Package Included:

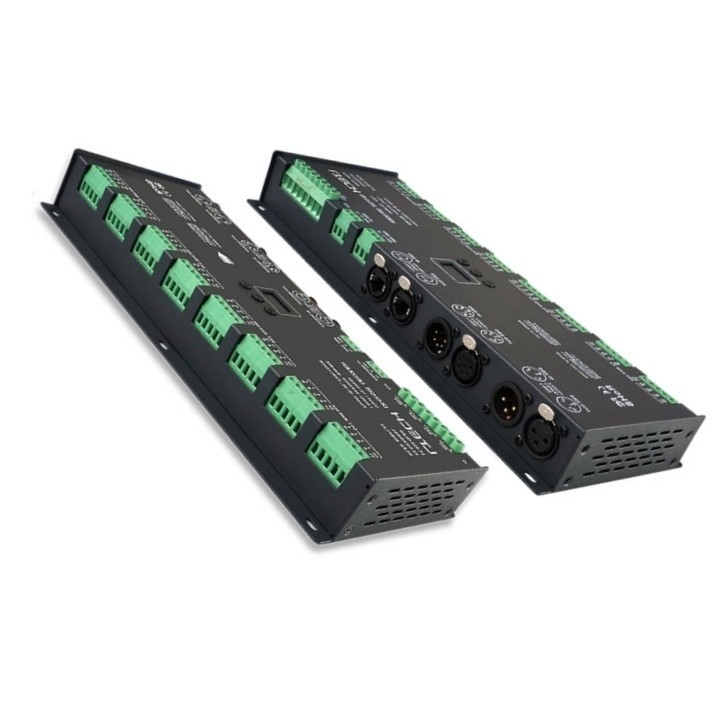

1 Piece of 24 Channels DMX Controller Decoder DC12V 24V LT-924-OLED LTECH
1 Piece of 24 Channels DMX Controller Decoder DC12V 24V LT-924-OLED LTECH
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
