Details

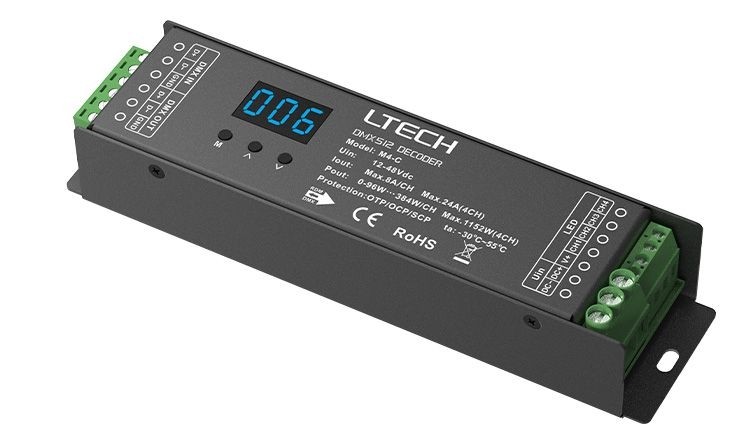

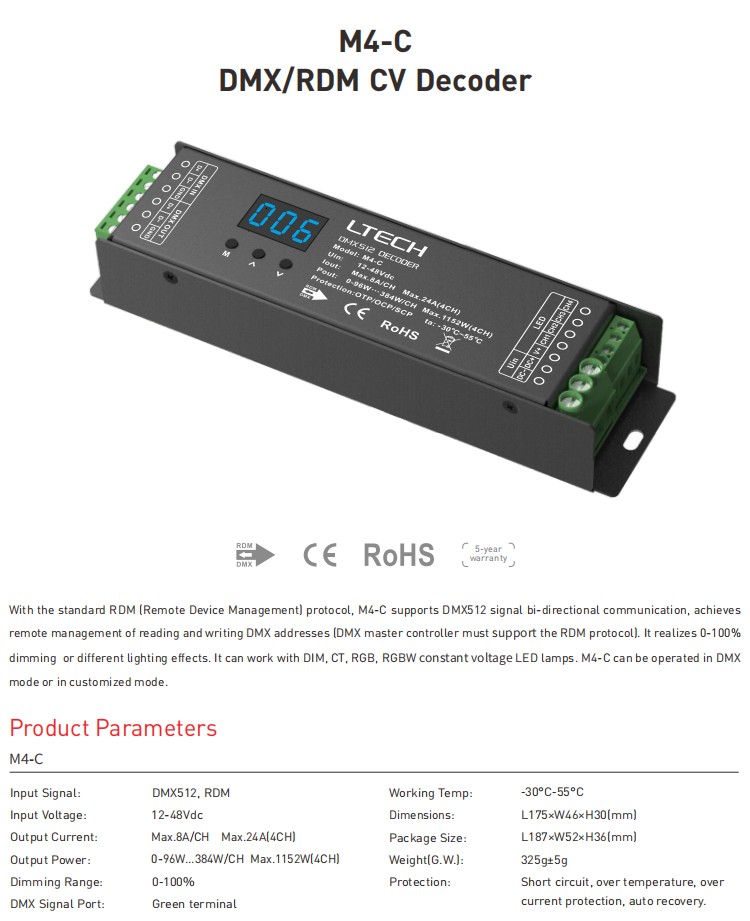

Ltech M4-C 4CH 8A 12-48Vdc DMX RDM CV Decoder
With the standard RDM (Remote Device Management) protocol, M4-C supports DMX512 signal bi-directional communication, achieves remote management of reading and writing DMX addresses (DMX master controller must support the RDM protocol). It realizes 0-100% dimming or different lighting effects. It can work with DIM, CT, RGB, RGBW constant voltage LED lamps. M4-C can be operated in DMX mode or in customized mode.
Input Signal: DMX512, RDM
Input Voltage: 12-48Vdc
Output Current: Max.8A/CH Max.24A(4CH)
Output Power: 0-96W...384W/CH Max.1152W(4CH)
Dimming Range: 0-100%
DMX Signal Port: Green terminal
Working Temp: -30°C-55°C
Dimensions: L175×W46×H30(mm)
Package Size: L187×W52×H36(mm)
Weight(G.W.): 325g±5g
Protection: Short circuit, over temperature, over current protection, auto recovery.
Package Included:
1 Piece of Ltech M4-C 4CH 8A 12-48Vdc DMX RDM CV Decoder
Great Choice for Green Life, CE and RoHS Approved
