Details

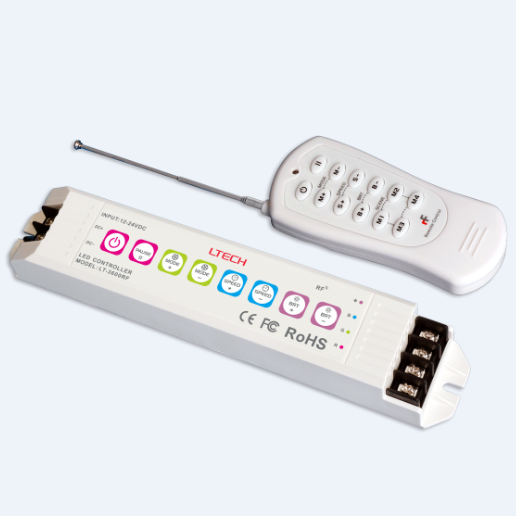

Platinum Series-Multi function LED Controller
Platinum series LED controller is a universal RGB controller for entire color changing, which adopted the most advanced PWM (Pulse-Width Modulation) controlling technology at present. PC engineering plastic panel with T-Touch/soft-touch function button and exquisite appearance. Widely controlled for RGB full color LED module, LED strip,LED SMD tape and all resistance of the current limit LED lighting products.
Performance Features
Automatically adapt to LED light which works from DC5V-24V or DC12V-24V.
4096 levels of grey scale per RGB, even & smooth for color gradual changes, without any flashes.
16/32 fantastic modes such as color smooth , color skipping, horserace, strobe, etc.
Can stop at static single color, speed & brightness adjustable at pause status.
Working with power repeater to expand power output unlimitedly.
LT-3600RF
Input voltage DC12V~DC24V
Max current load 6A/CH x3 Max18A
Max output power 216W/432W(12V/24V)
Scale levels 4096*4096*4096
Control button 8 Press buttons
Function Mode 16 modes
Remote control distance 100m
Radio Frequency Range 433.92MHz
RF Remote Output Power 8mW
working temperature -30~55
Dimension L211*W40*H30(mm)
Package Size L313*W50*H32(mm)
Weight (G.W) 230g
Package Include:
1 Piece of LTECH LT-3600RF Common Anode LED RGB Controller DC12-24V Input
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
Processing & Shipping & Tracking
Mostly the parcel will be shipped within around 1 to 3 business days after payment is received. If you need the items urgently, Pls do contact us for the delivery date right after or before you placed orders. Pls contact service@szdealer.com
Our website is very easy to use, you would place order without register, the shipping fee is based on the weight of the products you ordered. You would easily choose the Shipping Method (UPS/DHL/Fedex/Economic shipping) when you check out, We will always offer the Online Tracking Number to you via Email.
All the products will be packed well for every order, to make sure you will quickly receive all the products at great condition. We weekly supply hundreds of parcels to USA, UK, France, Germany, Italy, Switzerland, Spain, Canada, Sweden and other Europe countries, and we show you the following photos which we took right before we pack the parcels.
Ordering & Payment
We supply our clients with high quality products, quick shipping and professional service, Here are some photos of the Paypal Payments to our account, as you would see, all of the orders has tracking number, and none of them has any problems to be asked for refund or something else, it is a good reference of our products and service: (We covered the name and email to protect the privacy of our clients).
We offer high quality products and service, so a lot of customers become our loyal customers after they first buy, here are some cases for your reference:
We have access to additional products which are not yet listed on this website. If there is something else you need, please email us we will check on its availability and get back to you very soon.
Pls Contact service@szdealer.com We will reply quickly and professionally.
You would also send us a list of items you want to buy, and we will make a quotation then send Paypal Invoice to you to make shopping easily.
We weekly supply hundreds of parcels to UK, USA, Germany, Denmark, Austria, Canada, France, Spain and other coutries, enjoy good reputation of high quality and quick delivery.
You would always find LED Strips, LED Controllers, LED Power Supply, LED Accessories on Szdealer.com
