Details
NOTE: this link only includes the T1 remote;please also buy the receiver accroding to your demand,thanks.
T1 is the 2.4GHZ RF wireless synchronization/zone dimming controller which adopts LTECH multiple global initiate technology. The control system consists of two parts, the RF remote control and receiver, realize the signal synchronization on multiple receivers, zone controlled arbitrarily (not more than 8 zones) within effective distance, a very good solution for the LED project needs sync/zone control wirelessly.
Can RF remote the functions of dimming, quick brightness selection and DIY and so on. User-friendly color wheel for brightness adjustment, unique LED state light for sync change indicated, user can simply know the LED working state from distance by checking the remote.
Performance Features
1. Adopt 2.4GHZ RF wireless transmission technology, which is applicable for license and patent
free worldwide.
2. Built-in with dual core driver, make it 10 times of processing speed. can process the wireless
data transmission in complicated and multiple levels.
3. Advanced RF and wireless sync/zone control technology, no sync signal wire between receivers, sync capability is stable and reliable.
4. Remote controller adopts the capacitive touch control technology on the wheel, make the dimming
more intellectualized and humanized.
5. The remote control built-in sync-status indicator, which can show the bright status of the LED
synchronously.
6. Color changing scene mode and preset storage function.
7. USB charging port.

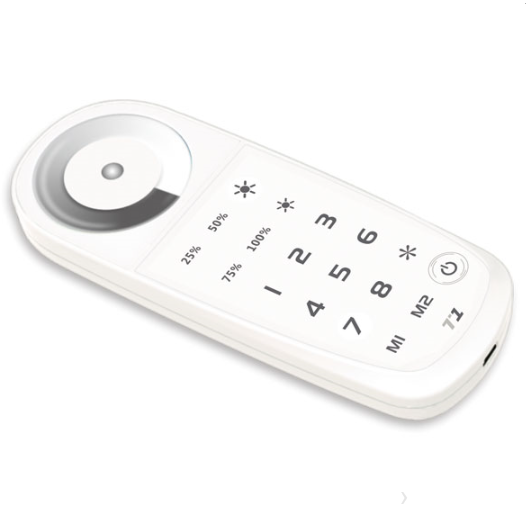

T1 Remote Control
Input voltage DC5V built-in Lithium battery
Working current 30mA
Working frequency 2.4GHZ
transmitting distance 30m
Remote option Sync or zone control
Battery capacity 1000mAh
Standby time 6 months
Dimension L145×W55×H22mm
Package Size L168×W102×H28mm
Weight (G.W) 200g
Note: The remote controler (T1/T2/T3) that shipped after Jan 15,2013 can be workable with WIFI-102 controller
T3-CV Receiving controller
Input voltage DC5V-DC24V
Max current load 6A×3CH Max 18A
Max output power 90W/216W/432W(5V/12V/24V)
Compatible remote control T1/T2/T2M/T3/T3M/T3X remote control
Working temperature -30~55
Dimension L175×W44×H30(mm)
Package size L178×W48×H33mm
Weight (G.W.) 150g
T3-CC Receiving controller (current 3 in 1)
Input voltage DC12V-DC48V
Output voltage DC3V-DC46V
Output current CC 350/700/1050mA ×3CH
Output power 1.05W~48.3W ×3CH Max 144.9W
Compatible remote control T1/T2/T2M/T3/T3M/T3X remote control
Working temperature -30~55
Dimension L175×W44×H30(mm)
Package size L178×W48×H33mm
Weight (G.W.) 160g
Package Included:
1 Piece of LTECH T1 12V LED Remote Control
Great Choice for Green Life, CE and RoHS Approved
Great Choice for Green Life, CE and RoHS Approved
