Details

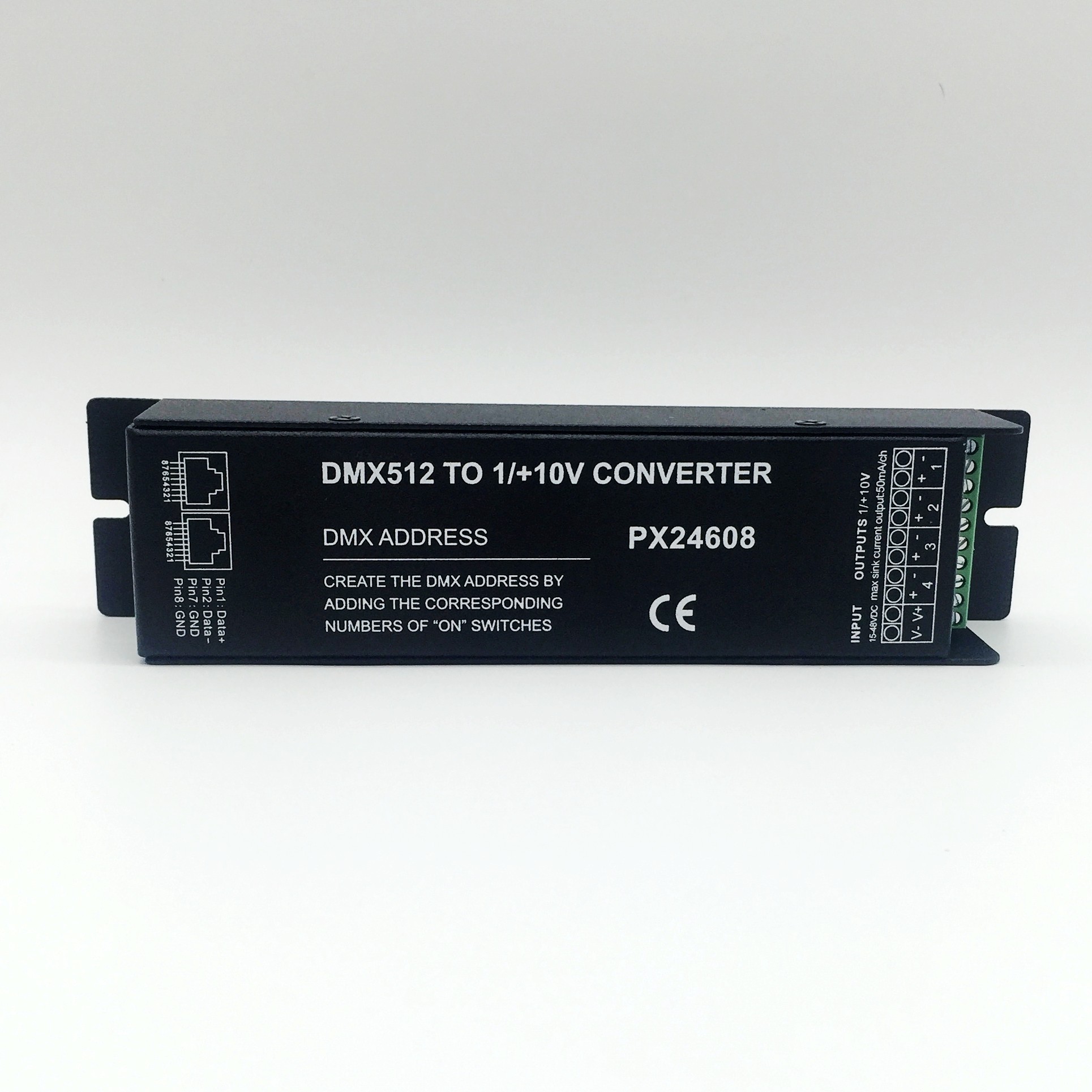

It is a good choice to use PX24608 DMX512 decoder. This PX24608 adopt the advanced micro-computer control technology, converts the DMX-standard digital signal adopted widely in international to 0-10V/1-10V signal.4 Channels output, output driver 20 mA per channel.it can be used to control 0-10V/1-10V dimmer. It is mainly used for signal convert betwwen DMX Master and 0-10V/1-10V Dimmer.
Features:
Meet the DMX512 international standard treaty
0-10V/1-10V analog signal output
4 channels output, output driver 20mA per channel
Match the controll system, can achieve various changing effects
With the lamp color selected mechanism, and be able to control the lamp with 1~4 colors
Can set the lamp DMX address freely
Modularizing and can be matched with different LED module neatly
Specs:
Decode CH. 1-4 channels
Signal Input： DMX-512/1990 International Standard Digital signal
Signal output： 0-10V/1-10V analog signal dimming, max 20mA per channel
Power supply (Working Voltage)： DC 24V
Work Temp. -15~55℃
Size：approx. L175(mm)*W41.5(mm)*H33.5(mm)
Packing size：approx. L180(mm)*W43(mm)*H38(mm)
Net Weight： approx.242.5g
Gross weight： approx. 255g
Package Included:
1 Piece of PX24608 Controller DMX 512 to 0-10V Convertor DMX512 Decorder
1 Piece of User's Manual
